Configurations

In the Admin Web Console, you can customize your deployments. This feature allows you to configure your Nodes' properties without manually modifying each new deployment. Currently, two types of configuration are supported: Frontend and Backend.

Backend Configuration

The Backend configuration leverages the Spring Cloud Config server. For a detailed description, refer to the Spring documentation.

In short, we create a key-value map of application properties. Any newly deployed node (whether it's a Plugin, Worker, Gateway, etc.) can load these properties from the external configuration server - in our case, the Admin Node.

“To change the location of Config Server either set spring.cloud.config.uri or add the url to the spring.config.import statement such as, spring.config.import=optional:configserver:http://myhost:8888. The location in the import property has precedence over the uri property.”
- Spring Docs

For more customization, you need to add the following properties to the client Node (also based on the Spring documentation):

• application - maps to spring.application.name on the client side
• profile - maps to spring.profiles.active on the client (comma-separated list)
• label - server-side feature that labels a "versioned" set of config files

Configuration should look like this:

spring:
  application:
    name: foo
  profiles:
    active: dev,mysql

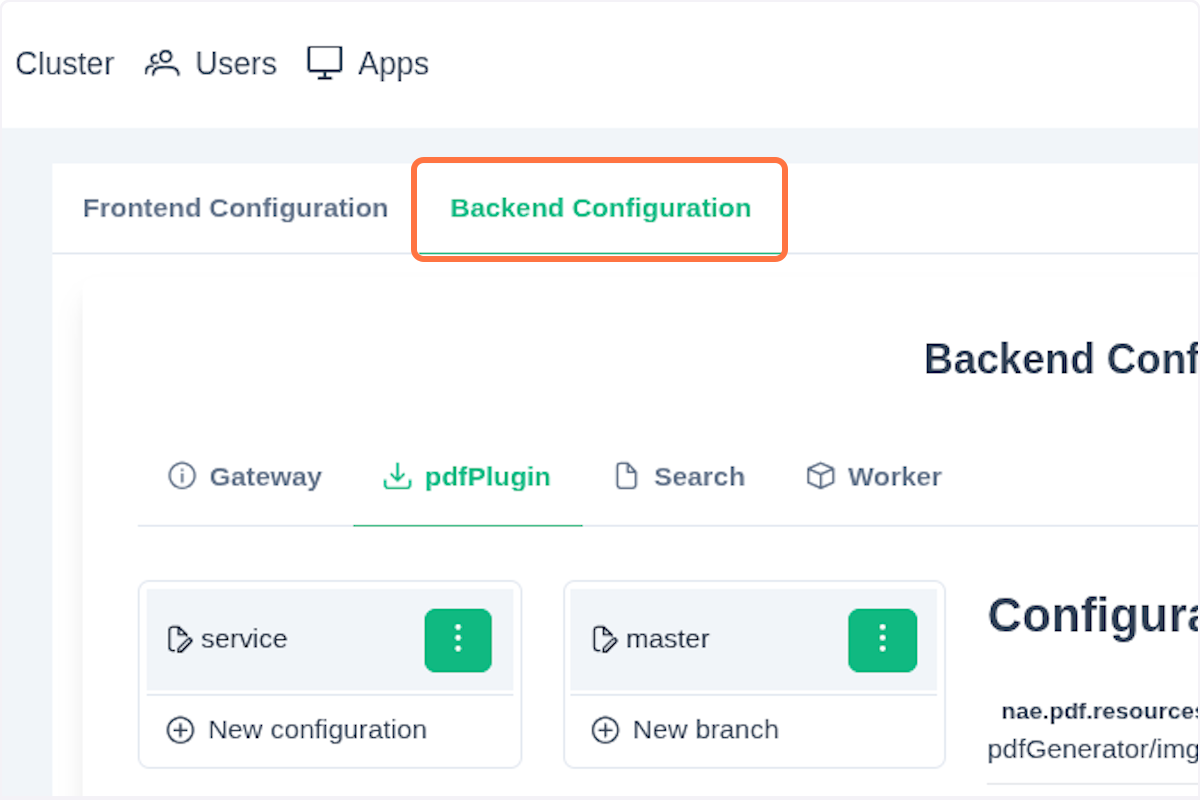

To add a new application property, click Configurations in the left menu, then click on the Backend Configuration tab on top of the card view.

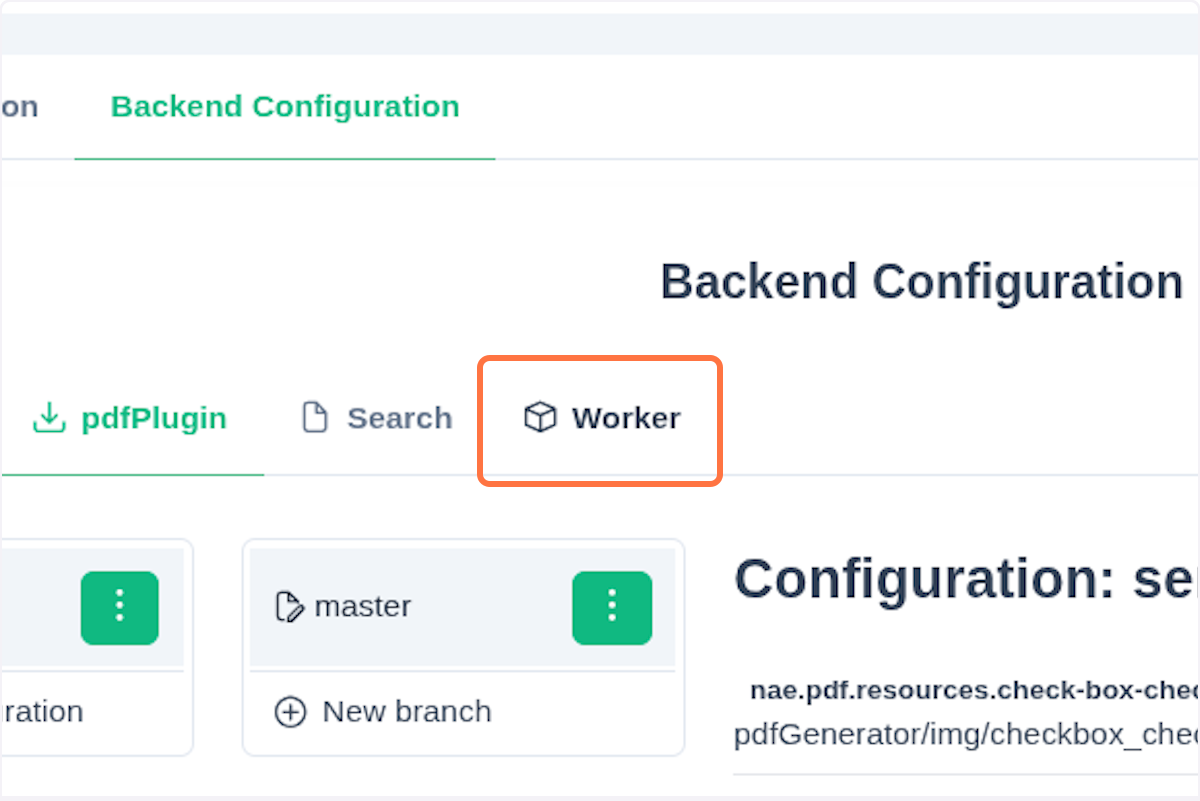

Now choose for which component (Node) you want to add or edit the property file, for example the Worker.

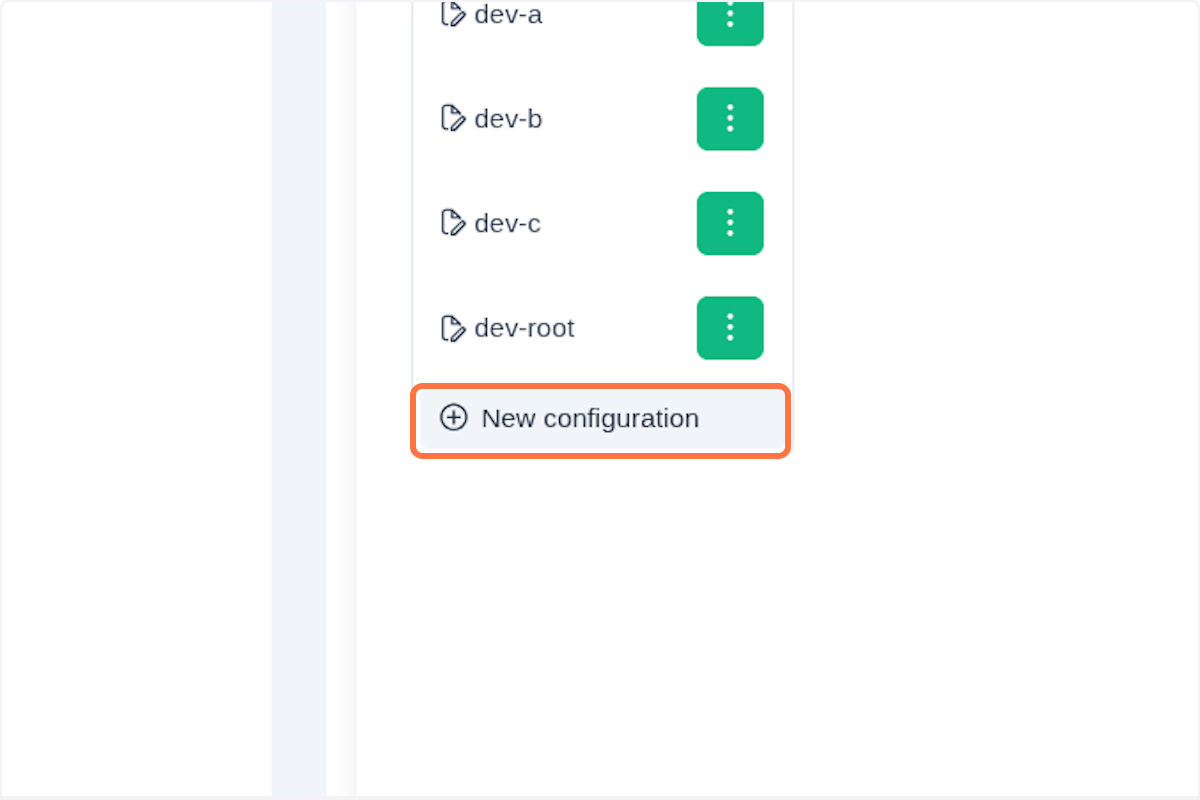

Click on New Configuration button.

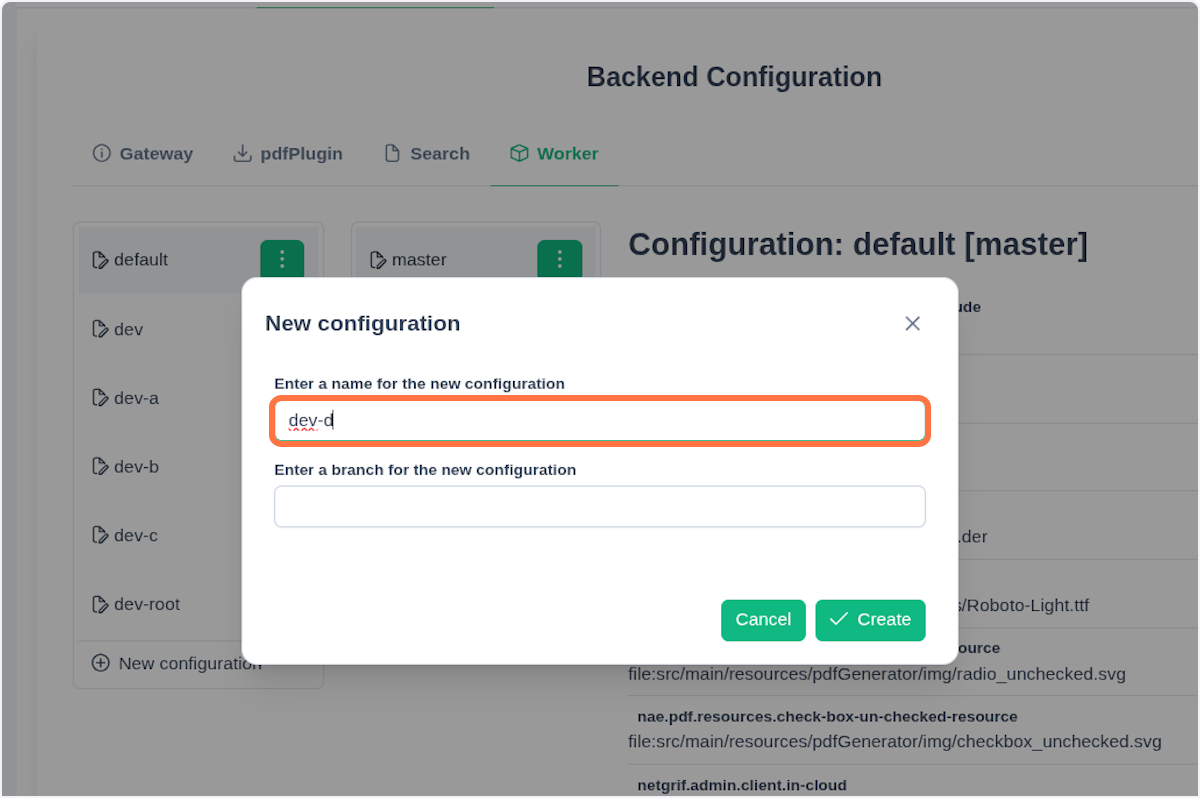

In the dialog window, fill out the following fields:

• Name - Name of the configuration (Spring profile)
• Branch - Version of the configuration, e.g., dev, prod, etc. (Spring configuration label)

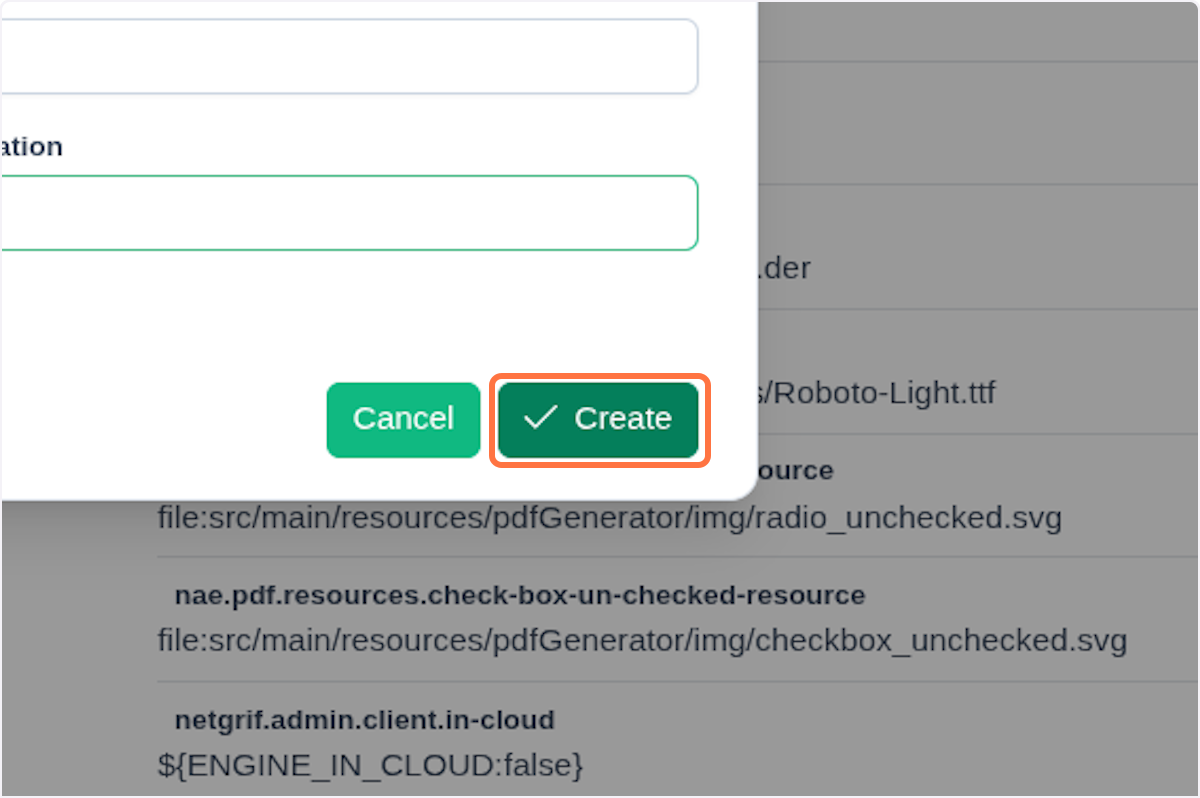

Confirm the creation by clicking the Create button.

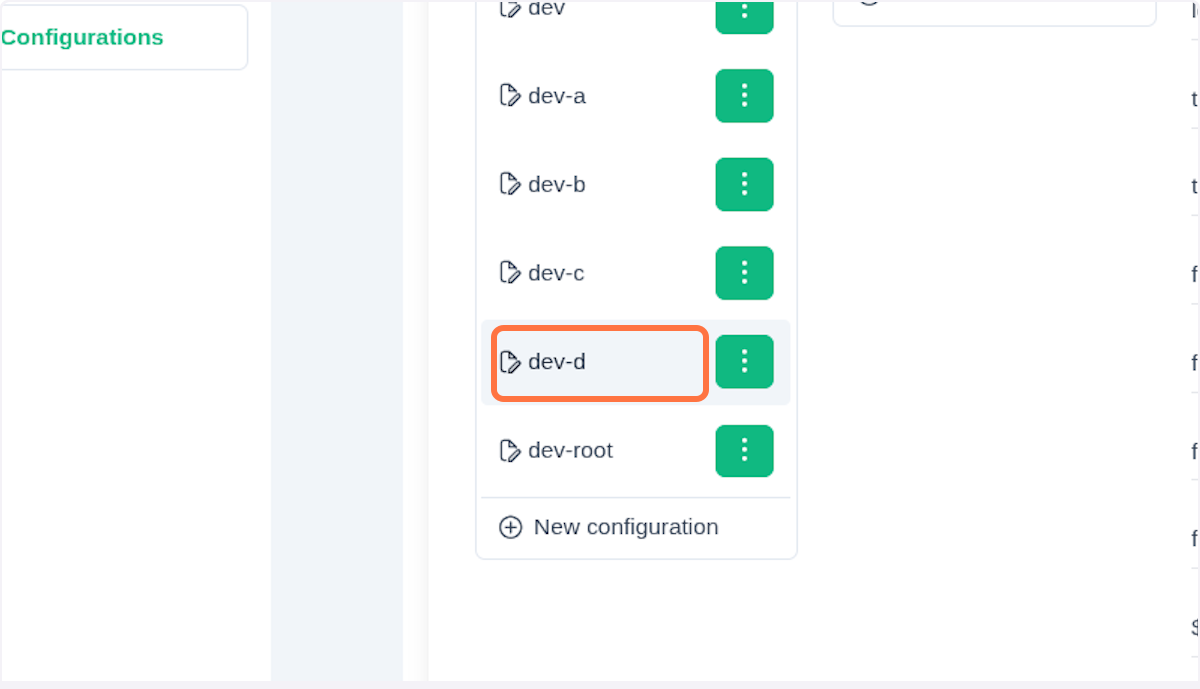

After the confirmation, you can see the newly created configuration as a new entry in the configurations list. Click on the new entry.

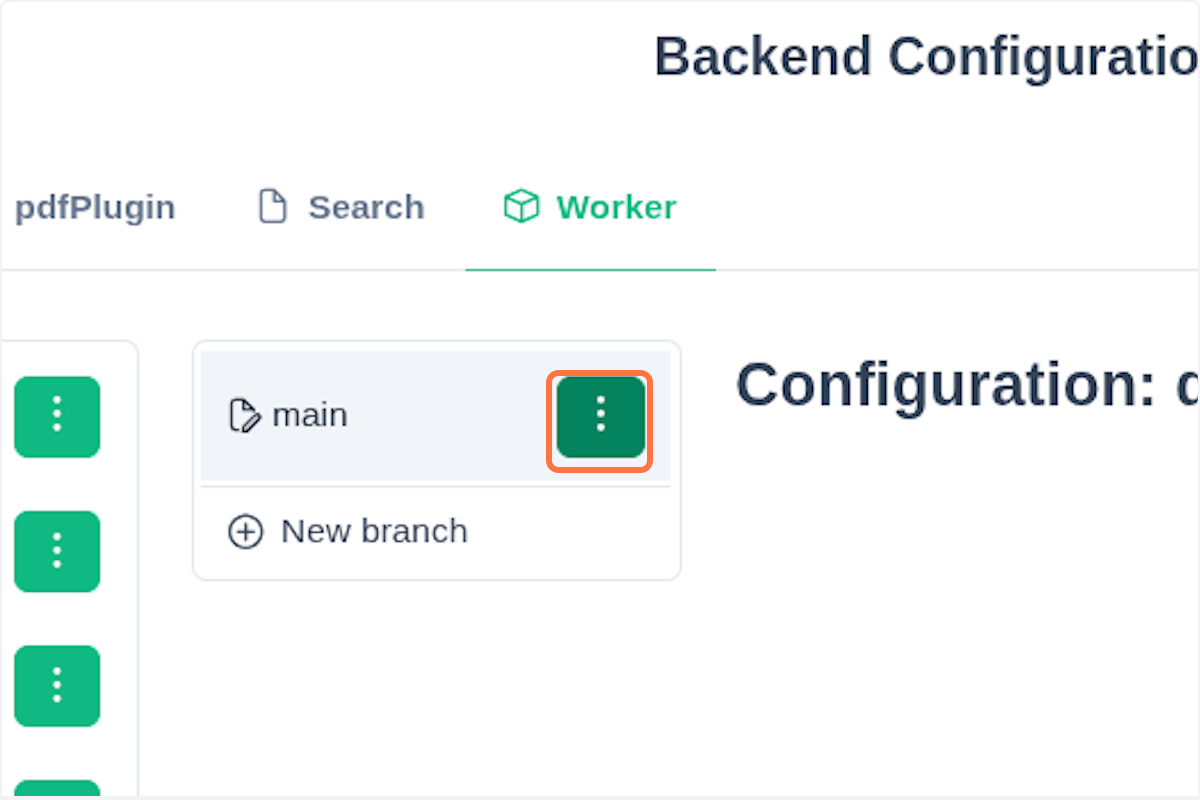

Then select a branch and click on the three vertical dots.

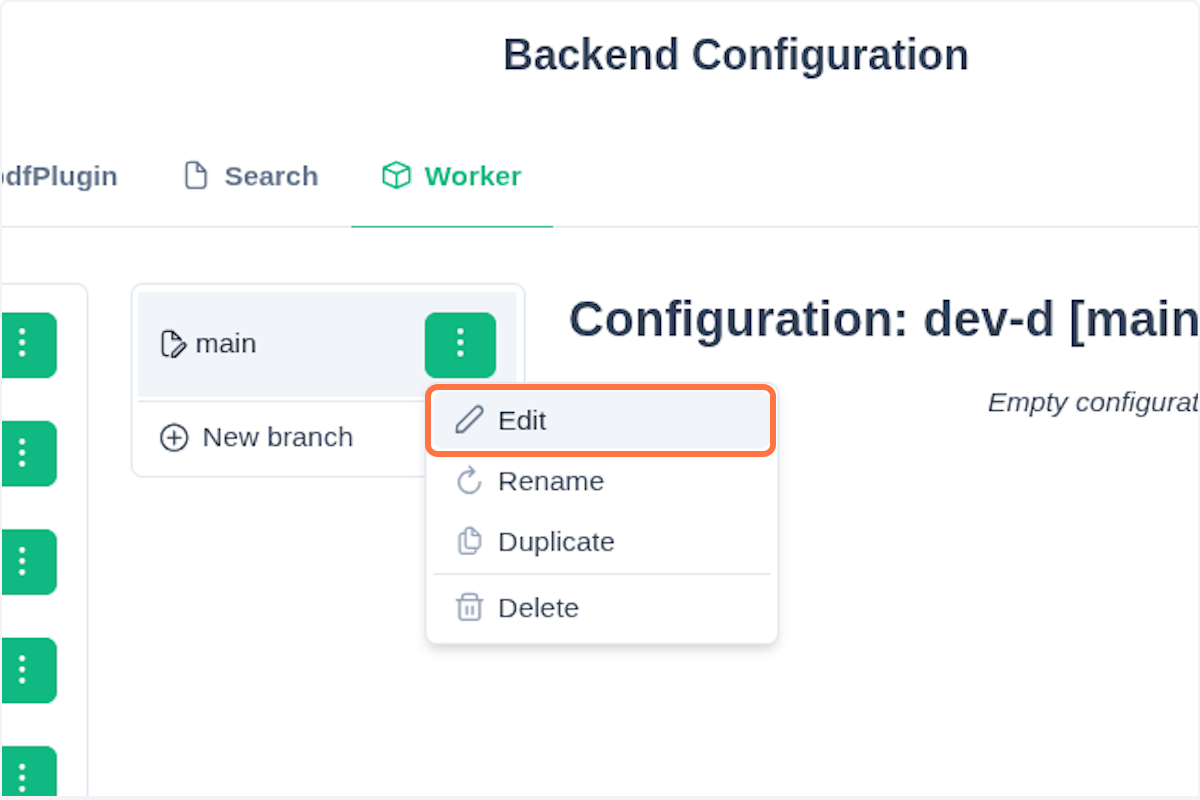

Click the Edit button.

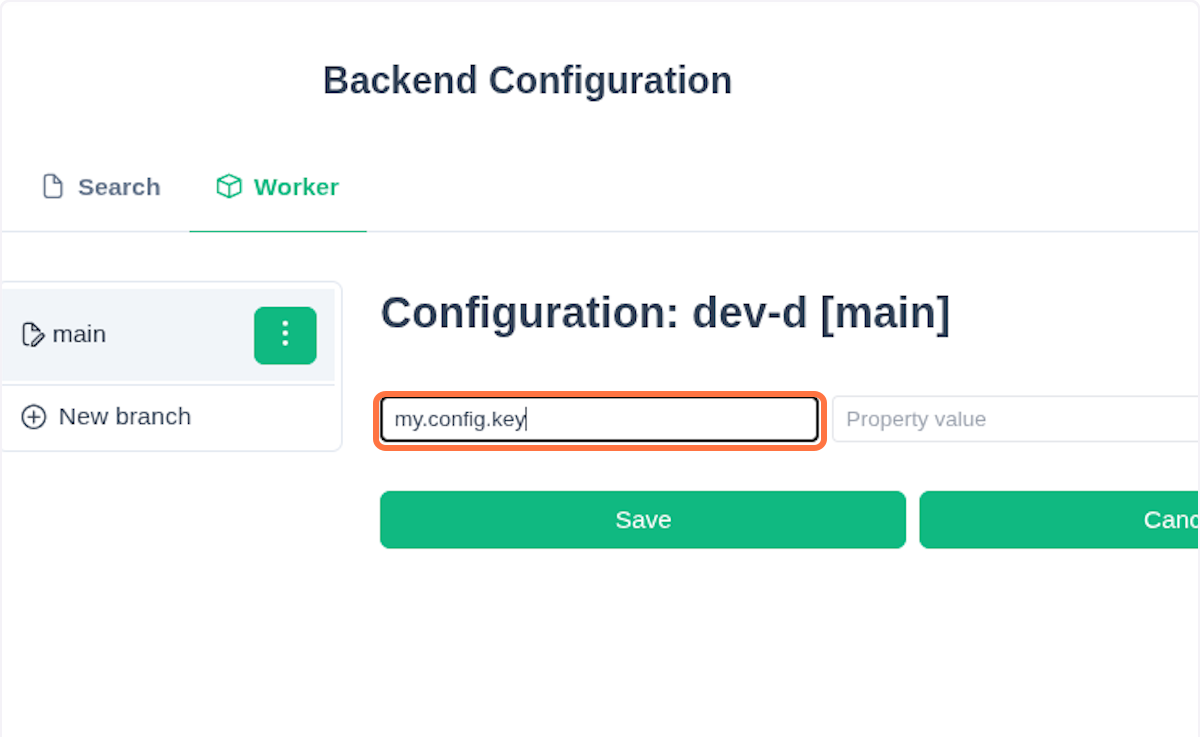

In the middle section, you can now see key-value fields. Fill in the fields as needed. For keys, use a dot . as the delimiter, for example: my.conf.key.

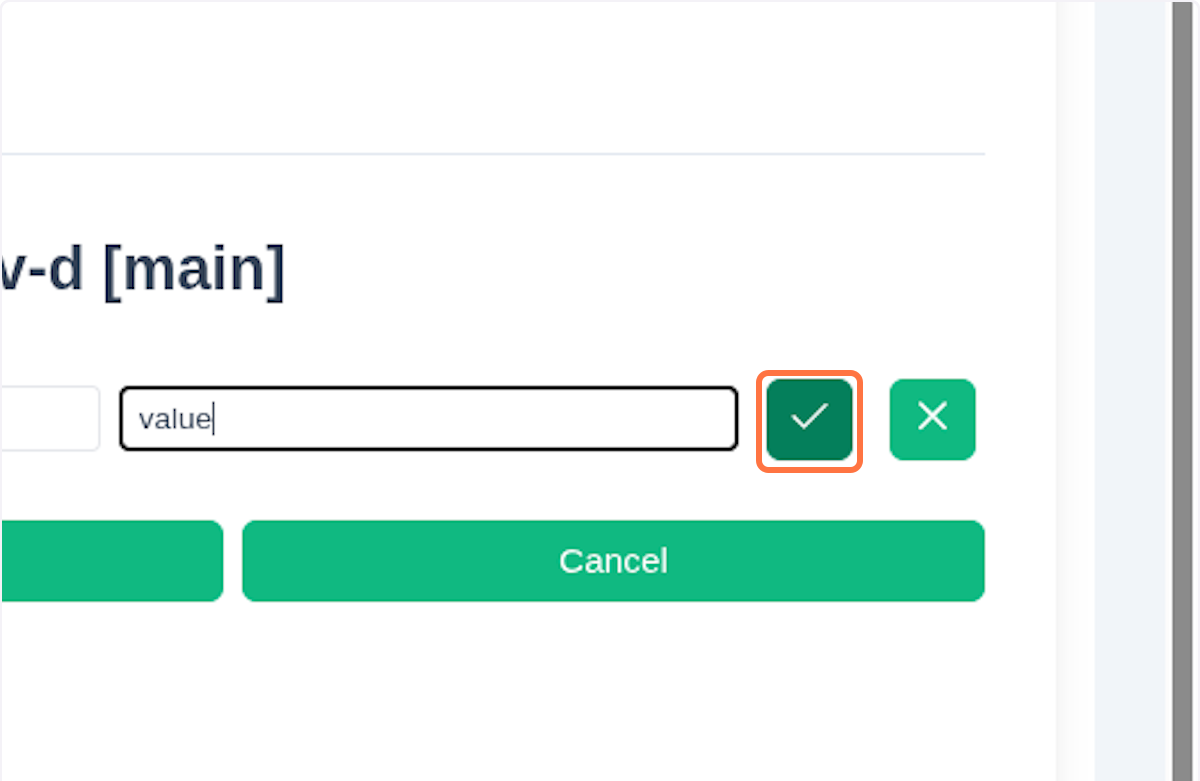

Click on the button with the check icon .

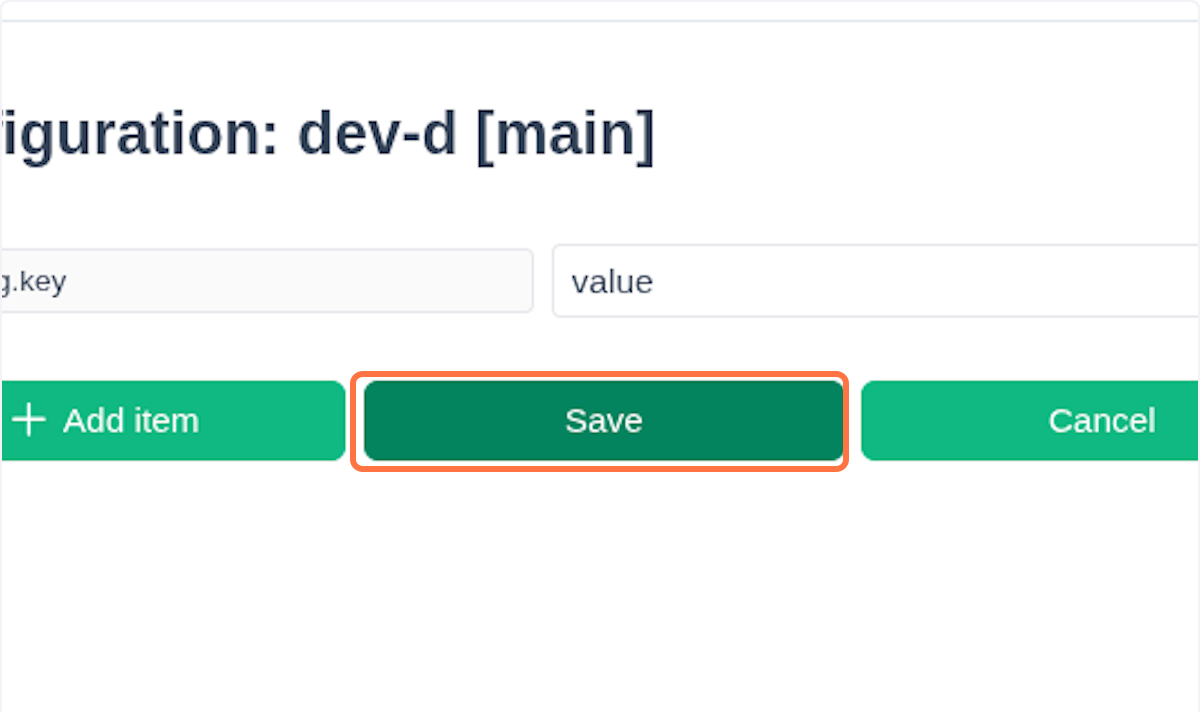

After you finish adding the properties, click on the Save button.

You can always update or remove the properties. The same applies for the branches and configurations.

NOTE

Now that you've created your configuration, you can retrieve it from the client application by calling:

<admin-node-url>/api/config/{application}/{name}/{branch}

For example:

localhost:8888/api/config/worker/dev-d/main

This corresponds to the /{application}/{profile}/{label} path described in the Spring documentation.

Frontend Configuration

Frontend configuration is a JSON file that the frontend application loads and uses during its startup process. If your fronted app (e.g., an Angular-based) needs custom routing or needs to expose a new endpoint, it can do so by calling the new configuration from the Admin node.

A great example is using netgrif-core or netgrif-component library in your frontend application. For a correct functioning of these libraries, there is a need to provide JSON configuration, typically called nae.json. The JSON contains information about auth providers, resource endpoints, etc. Before startup, you can provide a url endpoint from which nae.json will be loaded during the application bootstrapping process. The NAE Configuration Schema section contains a complete breakdown of what can be configured through the nae.json file.

You need to provide ApplicationConfiguration object:

• application - specifies the name or identifier of the application
• type - indicates the type or category of the application
• resolve_configuration - optional flag that determines whether the configuration should be resolved dynamically
• gateway_url - optional URL used as the gateway endpoint for the application's communication
• properties - represent the entire application configuration that is typically located in thenae.json

💡 Tip

Example file:

{
  "application": "nae",
  "type": "default",
  "gateway_url": "http://localhost:8800/api",
  "resolve_configuration": false
}

The gateway_url property specifies the URL of the Gateway Node, through which requests are rerouted to the Admin Node. The full URL for accessing the frontend configuration, as shown in the JSON example, is:

http://localhost:8800/api/frontend-config/public/nae/default

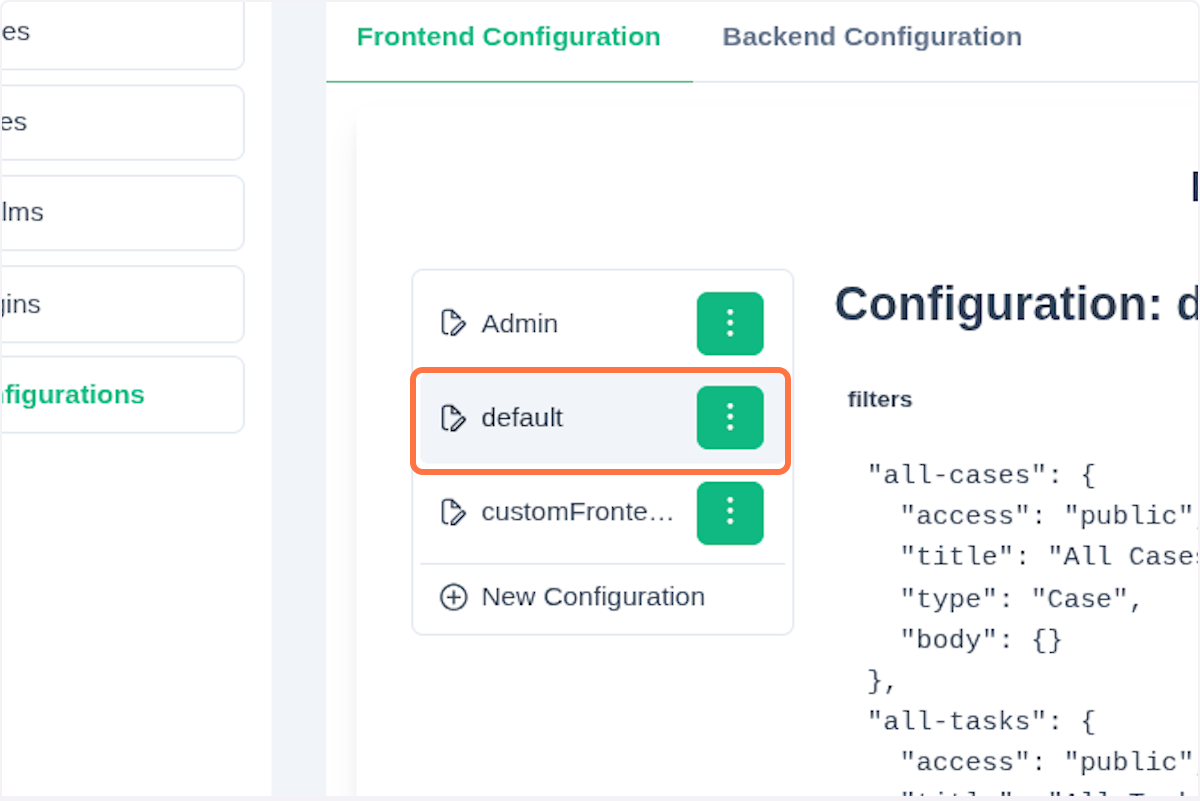

You can see an example nae.json file when you click Configurations -> Frontend Configurations. On the left, you can see the list of all frontend configurations. Click on default.

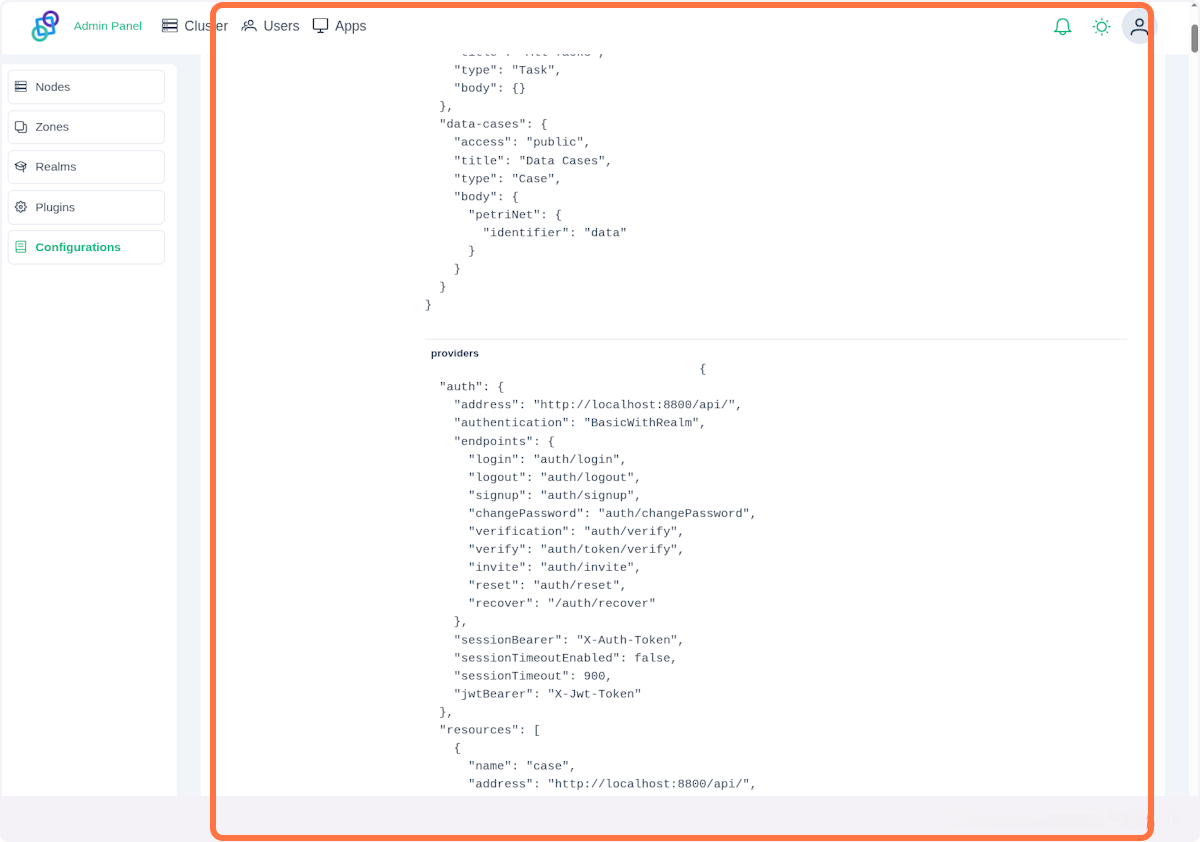

It will display a file with the entire configuration:

Create a New Frontend Configuration

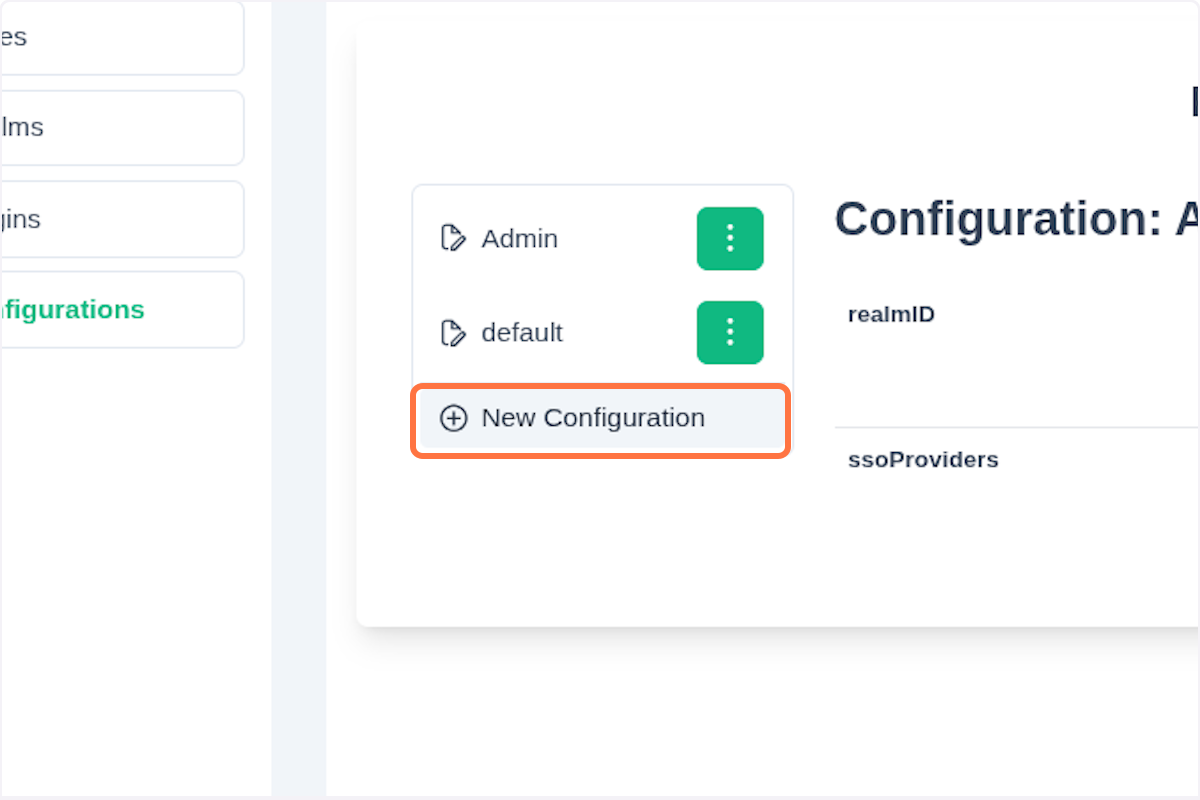

To create a new configuration, click on New Configuration.

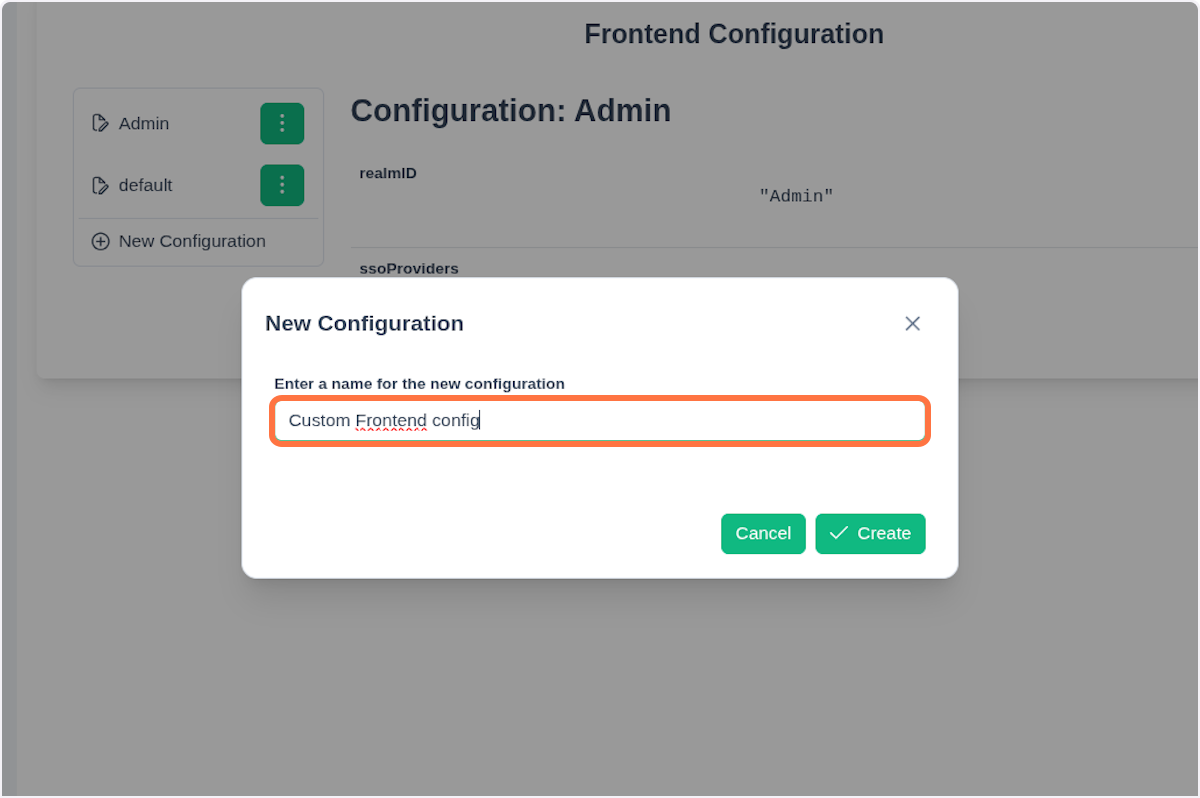

In the dialog window, fill in the name and then click Create.

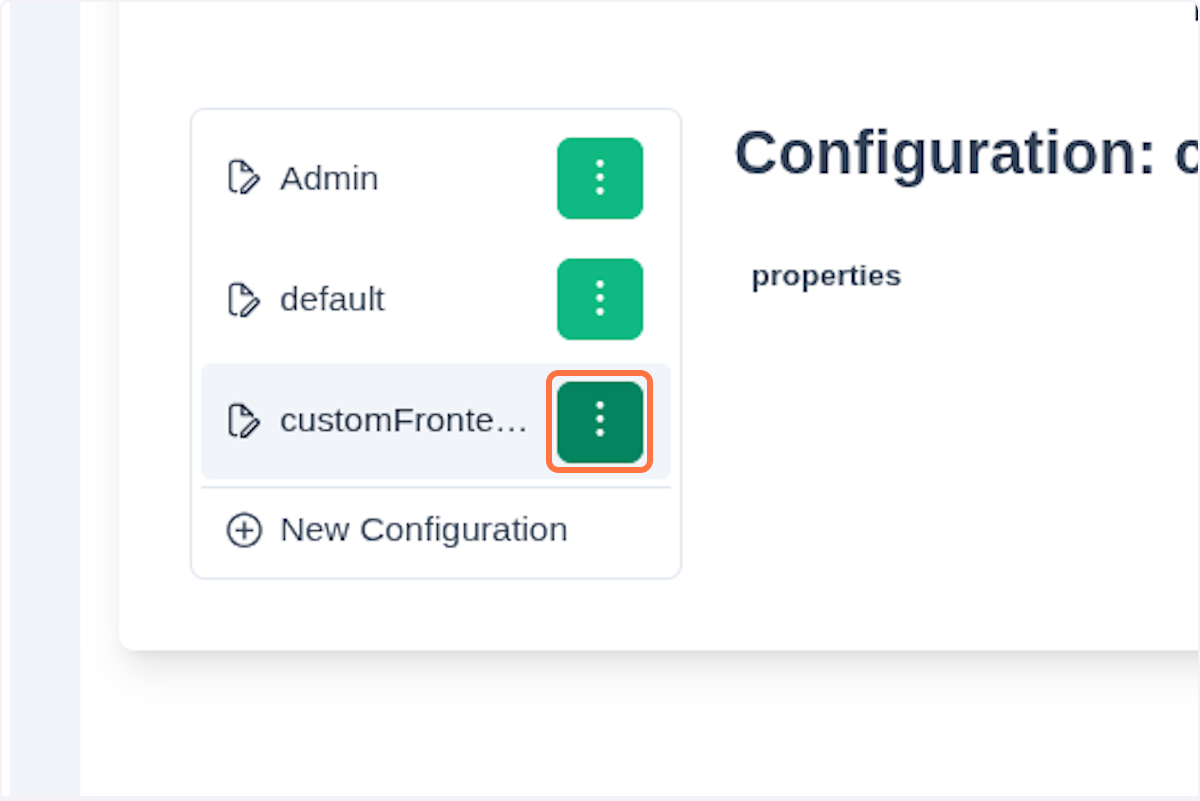

Click on the three dots next to your newly created entry.

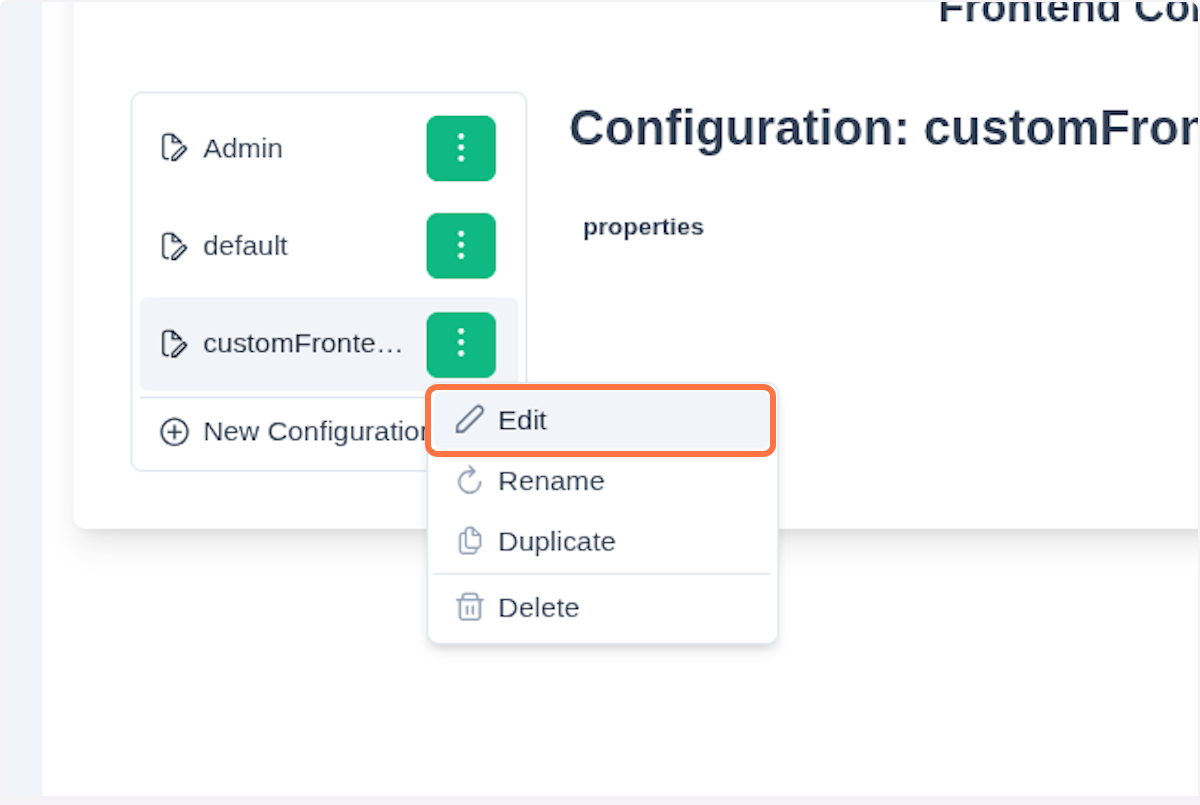

Click Edit.

Fill in your custom properties and click Save. You can also delete or rename the configuration as needed.

If you want to duplicate the configuration, in the three-dots-section select Duplicate.

Create a configuration for SSO Provider for Admin

IMPORTANT

You need to have an SSO provider created. You can find all the necessary steps in the chapter Create New Auth Provider.

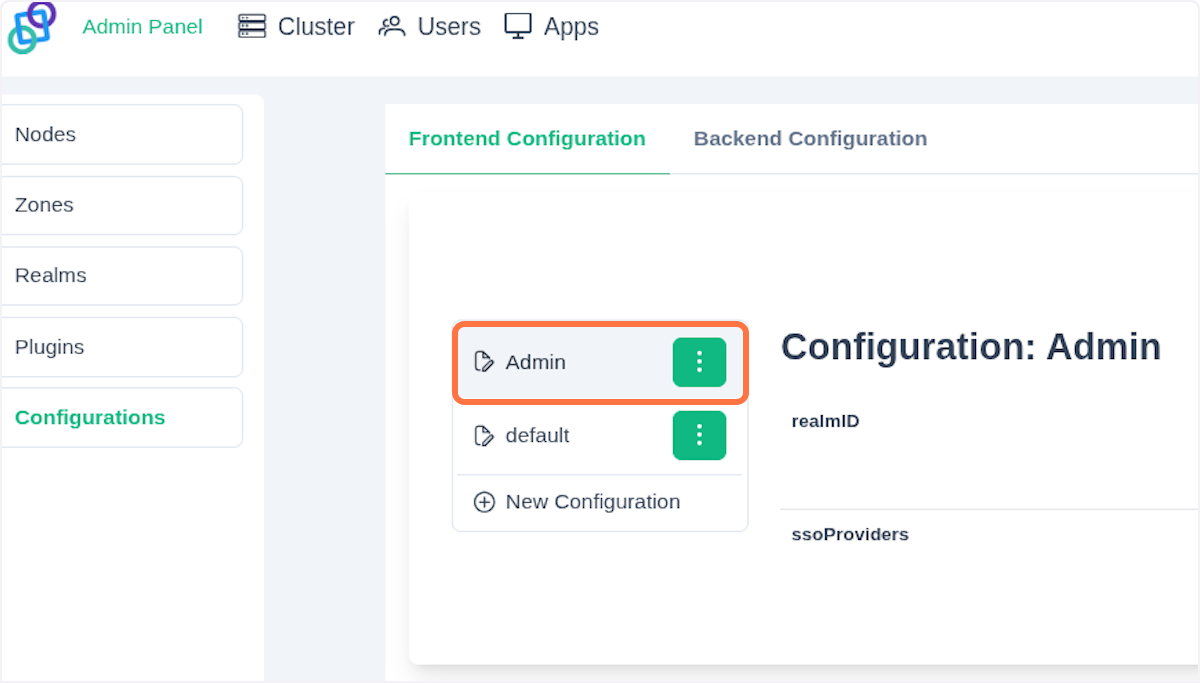

In the Frontend Configuration tab, you can see the configuration that was already created, named Admin.

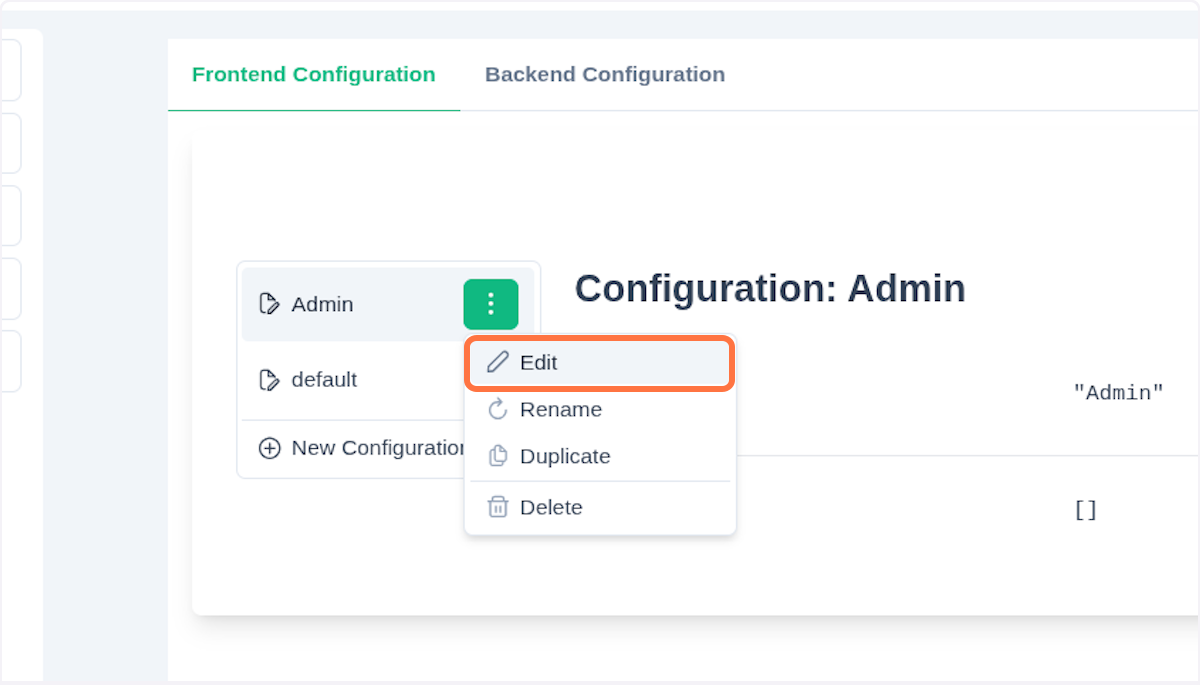

After clicking the three vertical dots, click on Edit.

You'll see this JSON object:

{
  "realmID": "Admin",
  "ssoProviders": []
}

We are configuring SSO for the realm called Admin, which is the main controlling realm. Below is a summary table of the configurable JSON properties:

Field	JSON Key	Description	Note
Label	label	Label for SSO button
Icon	icon	PrimeNg icon
ClientID	providerUrl	URL of the OIDC provider
Authorization URL	authUrl	The endpoint of the OIDC provider used to initiate the authentication request
Redirect URI	redirectURI	Where the user will be redirected after successful authentication
Response Type	responseType	Specifies the type of response the client expects from the authorization server	Values: code, token, id_token
Scope	scope	Defines the set of permissions or access levels requested by the client application	Values: openid, email, profile, roles

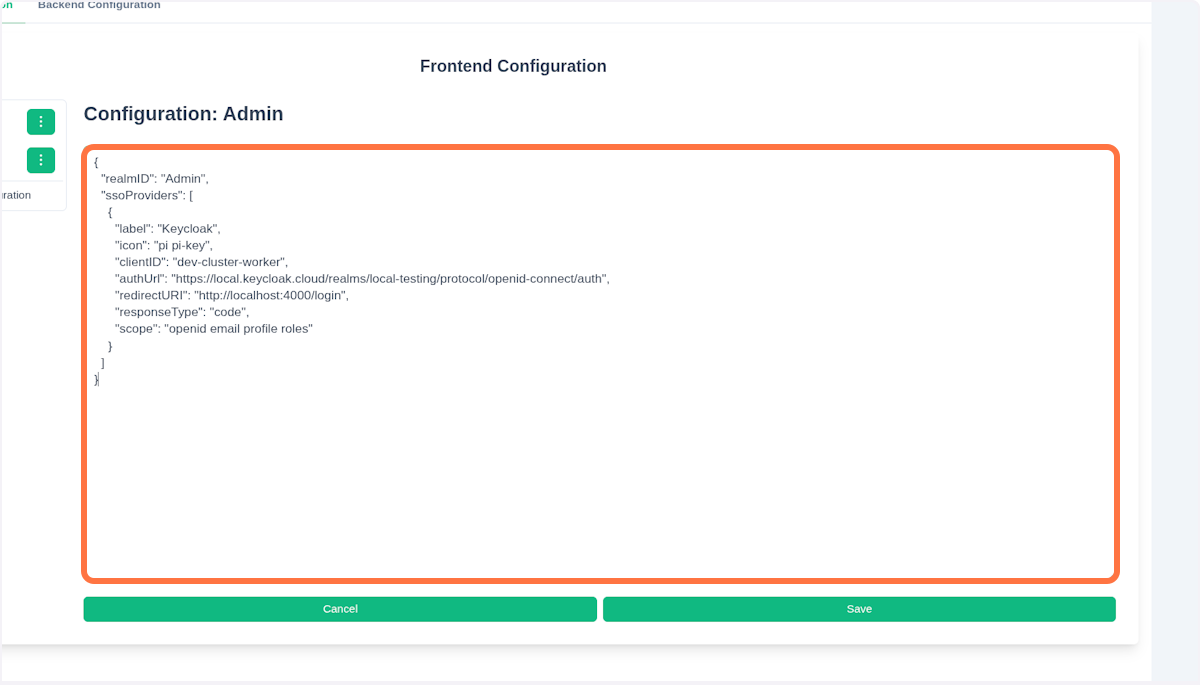

Your JSON configuration should look like this:

{
  "realmID": "Admin",
  "ssoProviders": [
    {
      "label": "Keycloak",
      "icon": "pi pi-key",
      "clientID": "dev-cluster-worker",
      "authUrl": "https://local.keycloak.cloud/realms/local-testing/protocol/openid-connect/auth",
      "redirectURI": "http://localhost:4000/login",
      "responseType": "code",
      "scope": "openid email profile roles"
    }
  ]
}

The table corresponds with the mapping filled in the SSO provider registration. All the data can be found in the well-known.json file. See the OpenID Connect described in the Realms chapter.

Write your configuration based on the JSON schema.

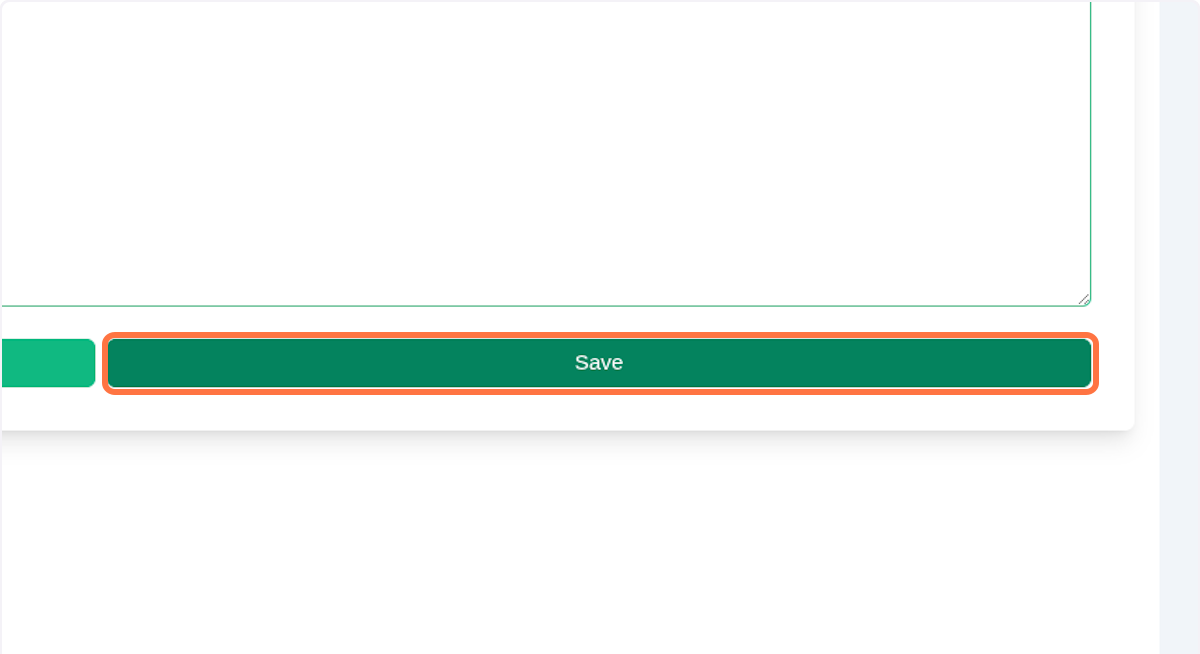

Click Save.

Now, log out from the application by clicking on the icon in the top right corner and select Logout.

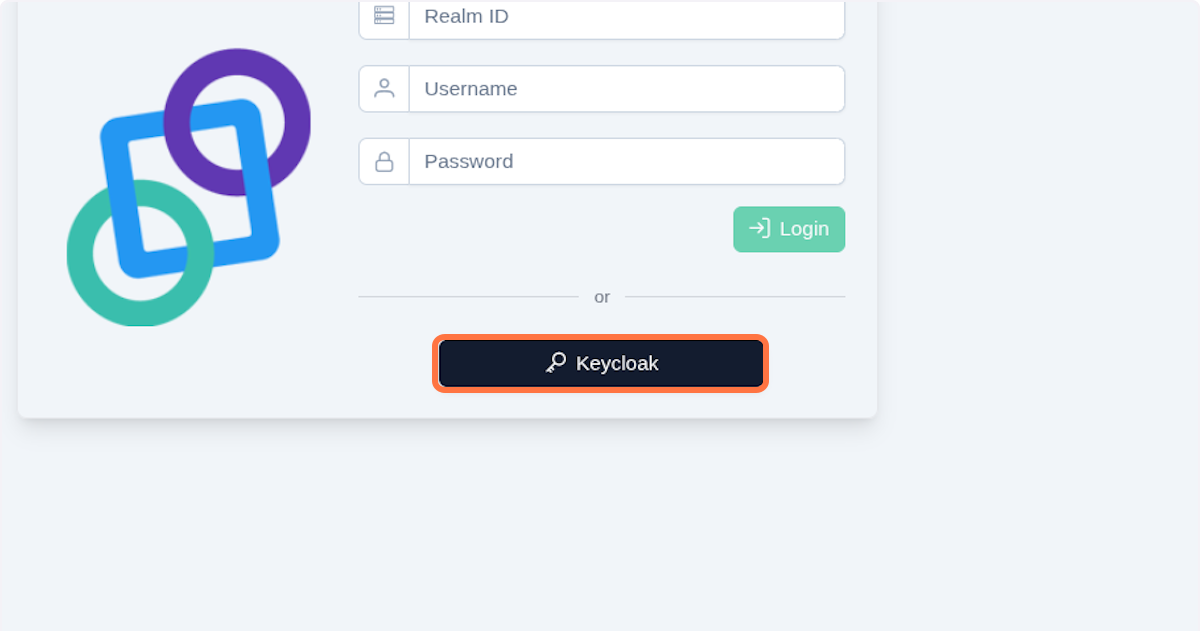

On the login page, you can see a new button.

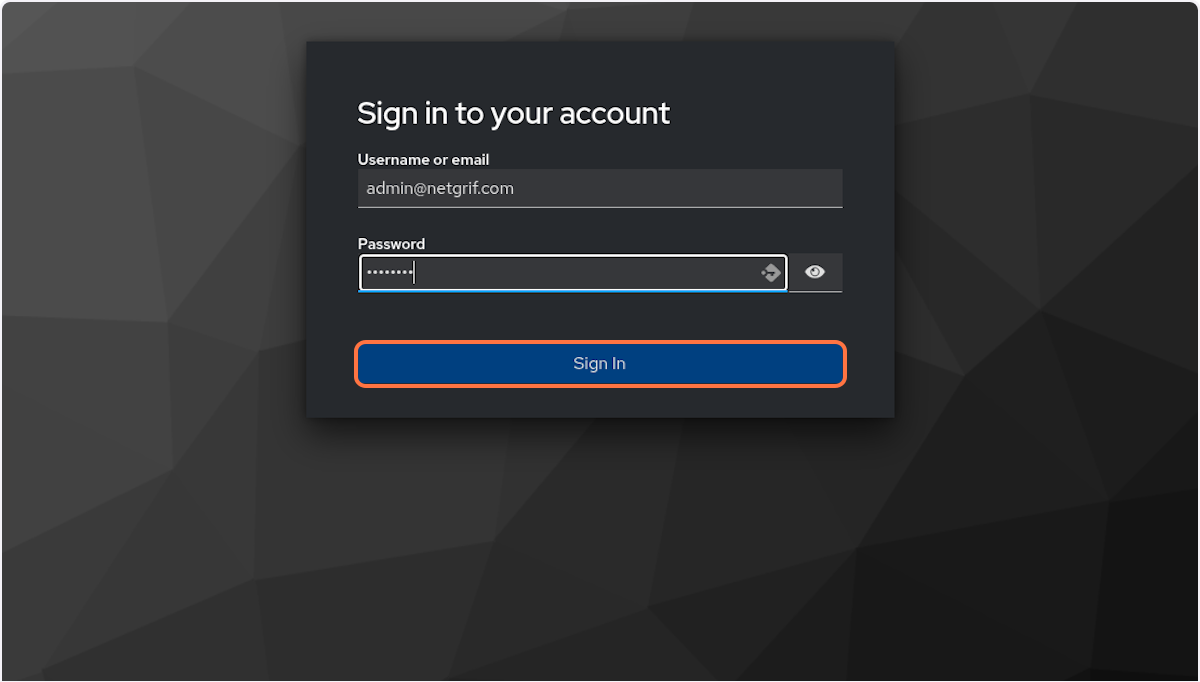

By clicking the Keycloak button, you'll be redirected to the authUrl (the authorization URL). Fill in your username or email and password, then click Sign In.

You'll be redirected back to the application, or to the value you added to the field redirectURI (the redirect URI). Now, you are successfully logged in with SSO!

NAE Configuration Schema

Schema for the NAE configuration object - nae.json. Defines filters, locales, providers, services, theme, and views.

Root Object

Key	Type	Description
filters	Filters	Filter configurations
locales	Locales	Locale definitions
providers	SetAuthAndResourcesAddress	Auth & resources configuration
services	Services	Services configuration
theme	Theme	Theme configuration
views	Views	View definitions

Definitions

Auth

Key	Type	Description
address	string	Address of the auth service
authentication	string	Authentication method
endpoints	object or string	Endpoints (key-value pairs or string)
sessionBearer	string	Session bearer token
sessionTimeoutEnabled	boolean (default: false)	Enable session timeout
sessionTimeout	number (default: 900)	Timeout in seconds

CaseLayout

Key	Type	Description
name	string (enum: caseView)	Layout type
params	object	Custom parameters

ConfigFilter

Key	Type	Description
access	string	Access level
mergeOperator	string (enum: AND, OR)	Query operator
query	object or array	Query definition
title	string	Filter title
type	string (enum: Case, Task)	Filter type

Filters

Key	Type	Description
(any key)	ConfigFilter	Filter definitions

Locales

Key	Type	Description
(any key)	string	Locale string

Resource

Key	Type	Description
address	string	Resource address
format	string	Resource format
name	string	Resource name
openApi	string	OpenAPI definition

Resources

Type	Description
Resource or array	One or more resources

Services

Key	Type	Description
auth	object	Auth service configuration
dataFields	object	Data field config
log	object	Logging configuration
routing	object	Routing configuration

Auth Sub-keys

Key	Type	Description
logoutRedirect	string	Redirect after logout
loginRedirect	string	Redirect after login
onLogoutRedirect	string	Custom logout redirect
toLoginRedirect	string	Redirect to login
onLoginRedirect	string	Custom login redirect

DataFields Sub-keys

Key	Type	Description
appearance	string	Appearance style
template	string	Template name

Log Sub-keys

Key	Type	Description
includeLogLevel	boolean	Include log level
level	string	Logging level
logWithDate	boolean	Add timestamp
publishers	array	Log publishers
serializeParams	boolean	Serialize params

Routing Sub-keys

Key	Type	Description
defaultRedirect	string	Default redirect
wildcardRedirect	string	Fallback redirect

SetAuthAndResourcesAddress

Key	Type	Description
auth	Auth	Authentication configuration
resources	Resource or array	NAE frontend configuration schema

TaskLayout

Key	Type	Description
name	string (enum: taskView)	Layout type
params	object	Custom parameters

Theme

Key	Type	Description
name	string	Theme name
pallets	object	Theme palettes (dark/light)

• Palette Structure
  • primary, secondary, warn (string or object)
• Shades: 50, 100, 200, 300, 400, 500, 600, 700, 800, 900
  • contrast (object) – contrast colors
  • dark (array of strings)
  • light (array of strings)

View

Key	Type	Description
access	string or object	View access (public, private, or object)
children	Views	Child views
component	object	Custom component definition
layout	object	Layout definition
navigation	object or boolean	Navigation config
routing	object	Routing config

Component Sub-keys

Key	Type	Description
class	string	Component class name
from	string	Component source

Layout Sub-keys

Key	Type	Description
componentName	string	Override autogenerated component name
name	string	Layout name
enableCaseTitle	boolean	Enable case title
isCaseTitleRequired	boolean	Require case title
showDeleteMenu	boolean	Show delete menu
confirmWorkflowDeletion	boolean	Confirm workflow deletion
params	object	Layout params (e.g. orientation)

Navigation Sub-keys

Key	Type	Description
icon	string	Navigation icon
title	string	Navigation title

Routing Sub-keys

Key	Type	Description
match	boolean	Match condition
path	string	Route path

Views

Key	Type	Description
(any key)	View	View definition
