Petriflow 101 - Part 8
Final Deployment, Testing & Conclusion
💡 What you'll complete
Finalize your Request workflow, export the Petriflow XML, configure assignment, deploy to eTask, and run an end-to-end verification.
Overview
Goal & Context
You’ll turn your modeled process into a running app:
polish metadata, export the source XML, configure auto-assignment, upload the final build to eTask, and validate the full path from Submit → Register → (Legal or Skip) → Answer → Status.
Step-by-Step Flow
| Step | Action | Purpose |
|---|---|---|
| 1️⃣ | Update metadata (title, initials, roles) | Clean final naming & access settings |
| 2️⃣ | Export Petriflow XML | Produce versioned, portable source |
| 3️⃣ | Set assign policy (auto/manual) | Smooth task handoff & UX |
| 4️⃣ | Upload to eTask | Deploy latest model to runtime |
| 5️⃣ | E2E test (public + logged-in) | Verify paths, permissions, and outputs |
Concept: Events & Action Phases
- Builder defines the model (places, transitions, forms, actions).
- Petriflow XML is the source of truth you can version and share.
- eTask executes it as a live workflow app.
- Auto-assignment gives tasks to eligible users instantly; use manual for controlled handovers.
Video
Watch the “Final Deployment & Testing” segment (1:12:47–end).
Pictures of steps

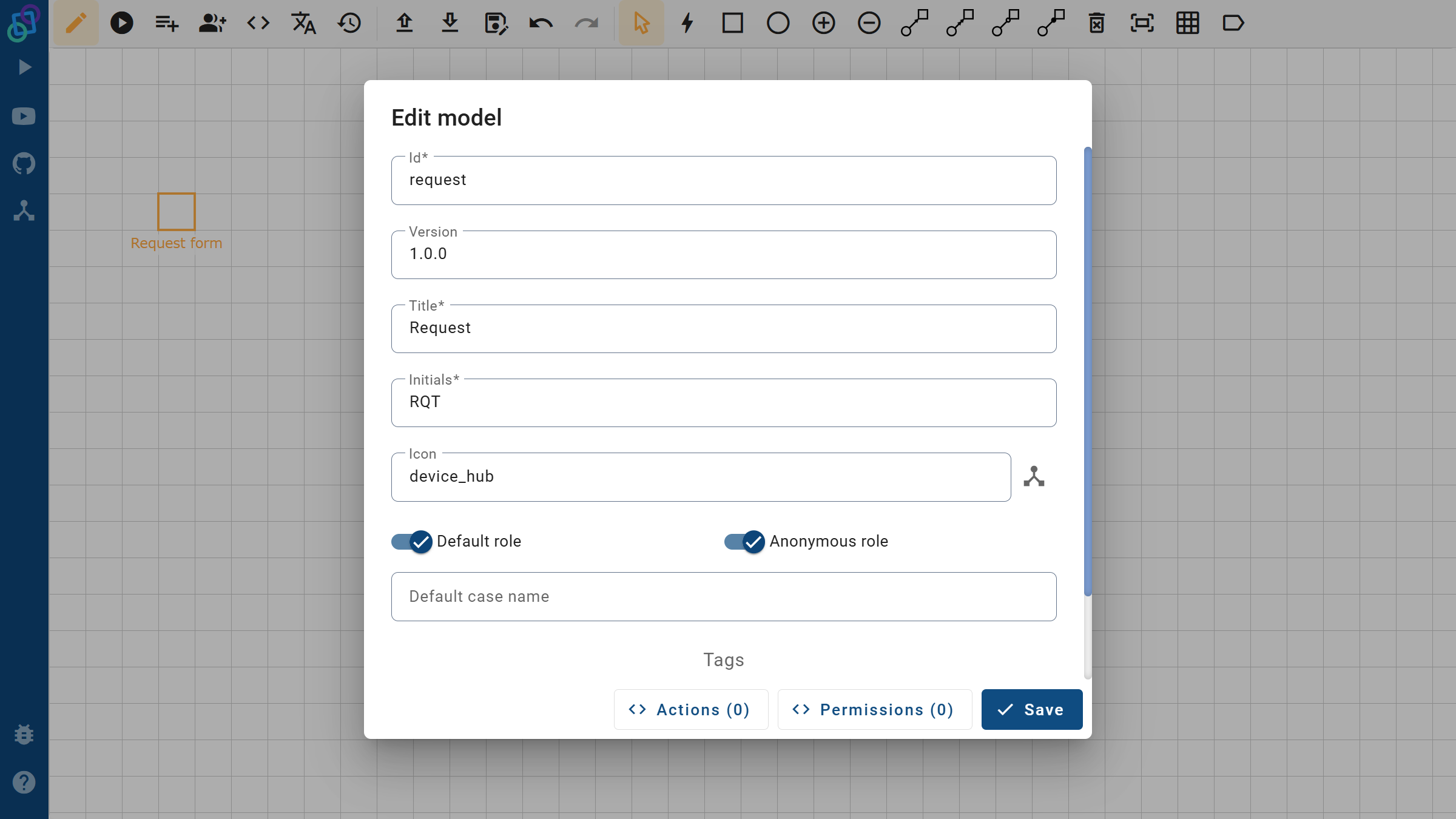

1️⃣ Update Metadata & Export XML
Open Process Metadata and finalize:
- Title: Request (clear app name)
- Initials:
RQT - Roles: keep Default / Anonymous as needed
Then click Export to get the .xml (your Petriflow source).

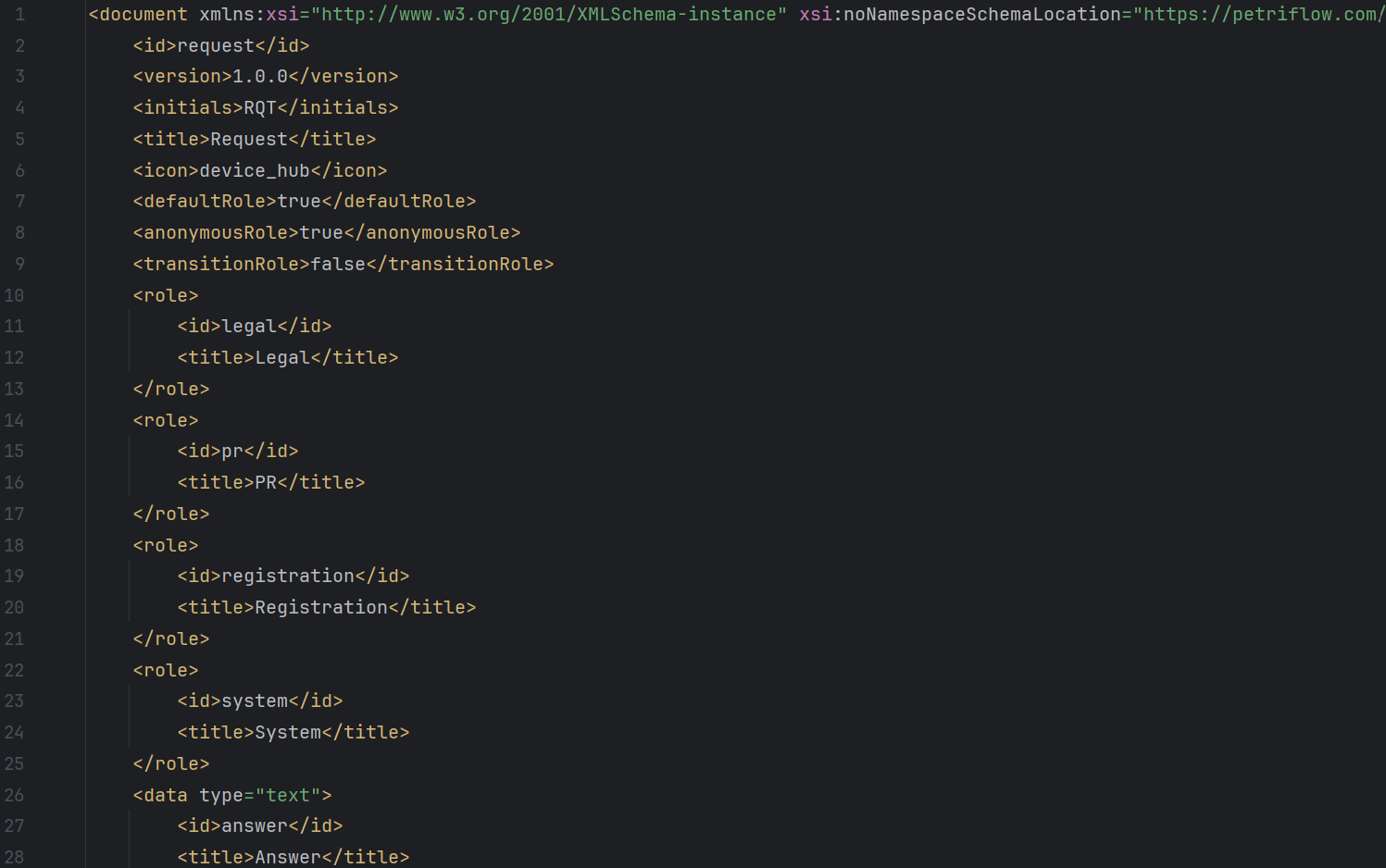

2️⃣ Inspect Source
Open the XML to review places, transitions, forms, and actions. This file is re-importable in Builder and suitable for version control.

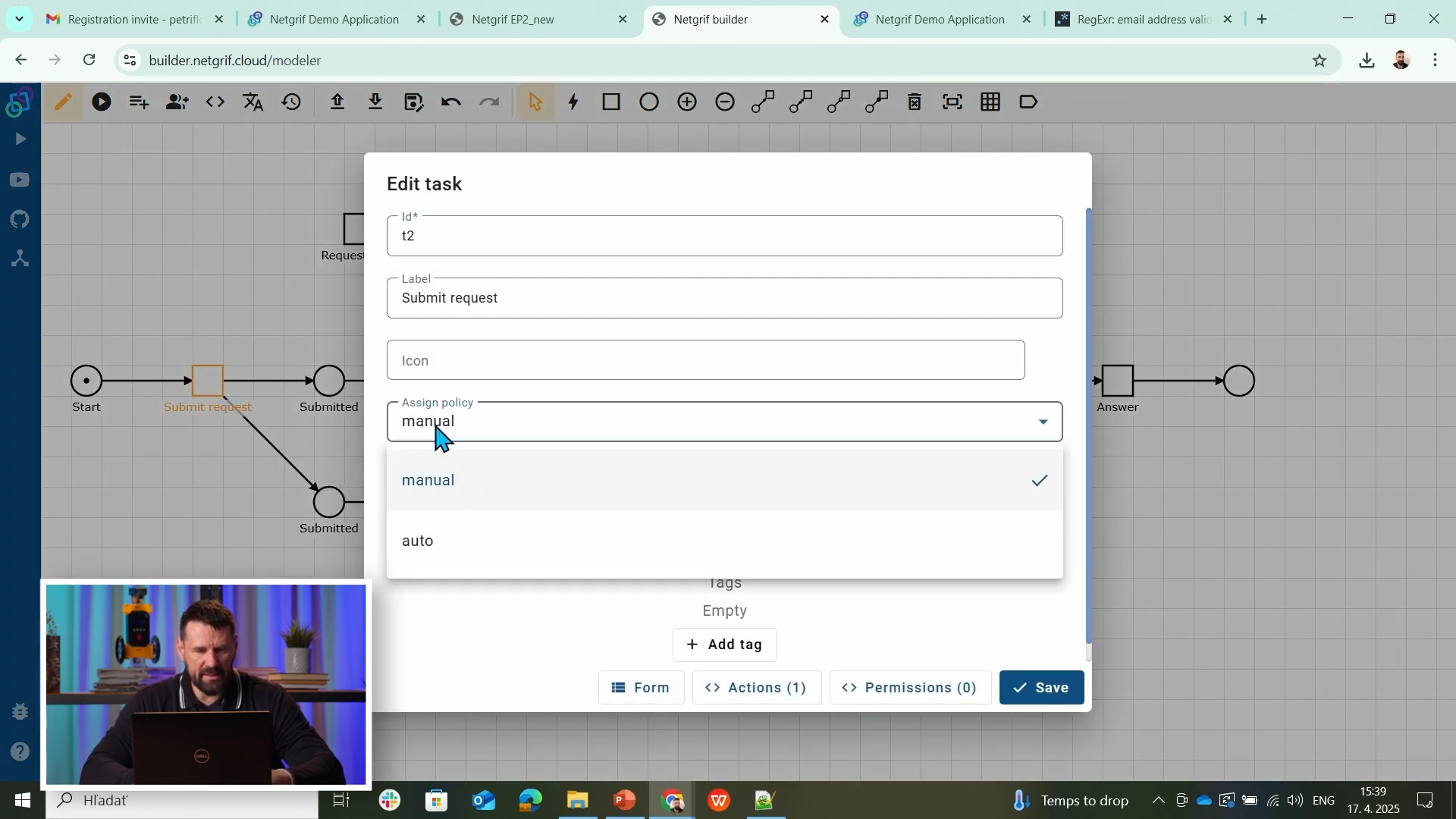

3️⃣ Configure Assignment
For self-service steps (e.g., Submit request) set Assign policy to auto. For handover steps (e.g., department tasks) you may prefer manual.
4️⃣ Deploy to eTask
Go to eTask → Process Models → Upload. Use the Public URL to submit and observe workflow execution.
5️⃣ End-to-End Test
Run a full pass:
- Submit via public form (Anonymous/Default)
- Register → branch to Legal or Skip
- Answer (PR) → update Status
- Confirm final state and visibility rules
Source & Notes
You can find the process on the Builder source (Part 8)
Source code (XML file)
xml
<document xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="https://petriflow.com/petriflow.schema.xsd">
<id>request</id>
<version>1.0.0</version>
<initials>RQT</initials>
<title>Request</title>
<icon>device_hub</icon>
<defaultRole>true</defaultRole>
<anonymousRole>true</anonymousRole>
<transitionRole>false</transitionRole>
<role>
<id>legal</id>
<title>Legal</title>
</role>
<role>
<id>pr</id>
<title>PR</title>
</role>
<role>
<id>registration</id>
<title>Registration</title>
</role>
<role>
<id>system</id>
<title>System</title>
</role>
<data type="text">
<id>answer</id>
<title>Answer</title>
</data>
<data type="file">
<id>attachment</id>
<title>Attachment</title>
</data>
<data type="boolean">
<id>decision_legal</id>
<title>Go to legal?</title>
<init>false</init>
</data>
<data type="text">
<id>email</id>
<title>Email</title>
<validations>
<validation>
<expression>regex ^[\w-\.]+@([\w-]+\.)+[\w-]{2,4}$</expression>
<message>Please type a valid email</message>
</validation>
</validations>
</data>
<data type="text">
<id>name</id>
<title>Name</title>
</data>
<data type="text">
<id>phone</id>
<title>Phone number</title>
</data>
<data type="taskRef">
<id>reference_to_request_form</id>
<title/>
<init>t1</init>
</data>
<data type="text">
<id>request_text</id>
<title>Request</title>
</data>
<data type="text">
<id>state</id>
<title>State</title>
</data>
<data type="text">
<id>statement_of_legal</id>
<title>Statement of legal department</title>
<component>
<name>textarea</name>
</component>
</data>
<data type="text">
<id>surname</id>
<title>Surname</title>
</data>
<transition>
<id>t1</id>
<x>336</x>
<y>112</y>
<label>Request form</label>
<assignPolicy>auto</assignPolicy>
<roleRef>
<id>system</id>
<logic>
<perform>true</perform>
</logic>
</roleRef>
<dataGroup>
<id>t1_0</id>
<cols>4</cols>
<layout>grid</layout>
<dataRef>
<id>name</id>
<logic>
<behavior>editable</behavior>
</logic>
<layout>
<x>0</x>
<y>0</y>
<rows>1</rows>
<cols>2</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
</dataRef>
<dataRef>
<id>surname</id>
<logic>
<behavior>editable</behavior>
</logic>
<layout>
<x>2</x>
<y>0</y>
<rows>1</rows>
<cols>2</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
</dataRef>
<dataRef>
<id>email</id>
<logic>
<behavior>editable</behavior>
<behavior>required</behavior>
</logic>
<layout>
<x>0</x>
<y>1</y>
<rows>1</rows>
<cols>2</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
</dataRef>
<dataRef>
<id>phone</id>
<logic>
<behavior>editable</behavior>
</logic>
<layout>
<x>2</x>
<y>1</y>
<rows>1</rows>
<cols>2</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
</dataRef>
<dataRef>
<id>request_text</id>
<logic>
<behavior>editable</behavior>
<behavior>required</behavior>
</logic>
<layout>
<x>0</x>
<y>2</y>
<rows>2</rows>
<cols>4</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
<component>
<name>textarea</name>
</component>
</dataRef>
<dataRef>
<id>attachment</id>
<logic>
<behavior>editable</behavior>
</logic>
<layout>
<x>0</x>
<y>4</y>
<rows>1</rows>
<cols>4</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
<component>
<name>preview</name>
</component>
</dataRef>
</dataGroup>
</transition>
<transition>
<id>t2</id>
<x>176</x>
<y>272</y>
<label>Submit request</label>
<assignPolicy>auto</assignPolicy>
<dataGroup>
<id>t2_0</id>
<cols>4</cols>
<layout>grid</layout>
<dataRef>
<id>reference_to_request_form</id>
<logic>
<behavior>editable</behavior>
</logic>
<layout>
<x>0</x>
<y>0</y>
<rows>1</rows>
<cols>4</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
</dataRef>
</dataGroup>
<event type="finish">
<id>t2_finish</id>
<actions phase="pre">
<action id="1">
<![CDATA[
state: f.state;
change state value { "Your request was submitted."; }
]]>
</action>
</actions>
</event>
</transition>
<transition>
<id>t3</id>
<x>432</x>
<y>272</y>
<label>Register</label>
<roleRef>
<id>registration</id>
<logic>
<perform>true</perform>
</logic>
</roleRef>
<dataGroup>
<id>t3_0</id>
<cols>4</cols>
<layout>grid</layout>
<dataRef>
<id>decision_legal</id>
<logic>
<behavior>editable</behavior>
</logic>
<layout>
<x>1</x>
<y>0</y>
<rows>1</rows>
<cols>2</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
</dataRef>
<dataRef>
<id>reference_to_request_form</id>
<logic>
<behavior>visible</behavior>
</logic>
<layout>
<x>0</x>
<y>1</y>
<rows>1</rows>
<cols>4</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
</dataRef>
</dataGroup>
<event type="finish">
<id>t3_finish</id>
<actions phase="pre">
<action id="2">
<![CDATA[
state: f.state;
change state value { "Your requast was registered."; }
]]>
</action>
</actions>
<actions phase="post">
<action id="5">
<![CDATA[
decision_legal: f.decision_legal;
if (decision_legal.value == true) {
async.run{
assignTask("t4")
finishTask("t4")
}
}else {
async.run{
assignTask("t7")
finishTask("t7")
}
}
]]>
</action>
</actions>
</event>
</transition>
<transition>
<id>t4</id>
<x>656</x>
<y>176</y>
<label>go_to_legal</label>
<roleRef>
<id>system</id>
<logic>
<perform>true</perform>
</logic>
</roleRef>
</transition>
<transition>
<id>t5</id>
<x>912</x>
<y>176</y>
<label>Statement of legal</label>
<roleRef>
<id>legal</id>
<logic>
<perform>true</perform>
</logic>
</roleRef>
<dataGroup>
<id>t5_0</id>
<cols>4</cols>
<layout>grid</layout>
<dataRef>
<id>statement_of_legal</id>
<logic>
<behavior>editable</behavior>
<behavior>required</behavior>
</logic>
<layout>
<x>0</x>
<y>0</y>
<rows>2</rows>
<cols>4</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
<component>
<name>textarea</name>
</component>
</dataRef>
<dataRef>
<id>reference_to_request_form</id>
<logic>
<behavior>visible</behavior>
</logic>
<layout>
<x>0</x>
<y>2</y>
<rows>1</rows>
<cols>4</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
</dataRef>
</dataGroup>
<event type="finish">
<id>t5_finish</id>
<actions phase="pre">
<action id="4">
<![CDATA[
t6: t.t6,
statement_of_legal: f.statement_of_legal;
make statement_of_legal, visible on t6 when { true }
]]>
</action>
</actions>
</event>
</transition>
<transition>
<id>t6</id>
<x>1136</x>
<y>272</y>
<label>Answer</label>
<roleRef>
<id>pr</id>
<logic>
<perform>true</perform>
</logic>
</roleRef>
<dataGroup>
<id>t6_0</id>
<cols>4</cols>
<layout>grid</layout>
<dataRef>
<id>answer</id>
<logic>
<behavior>editable</behavior>
<behavior>required</behavior>
</logic>
<layout>
<x>0</x>
<y>0</y>
<rows>2</rows>
<cols>4</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
<component>
<name>textarea</name>
</component>
</dataRef>
<dataRef>
<id>statement_of_legal</id>
<logic>
<behavior>hidden</behavior>
</logic>
<layout>
<x>0</x>
<y>2</y>
<rows>2</rows>
<cols>4</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
</dataRef>
<dataRef>
<id>reference_to_request_form</id>
<logic>
<behavior>visible</behavior>
</logic>
<layout>
<x>0</x>
<y>4</y>
<rows>1</rows>
<cols>4</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
</dataRef>
</dataGroup>
<event type="finish">
<id>t6_finish</id>
<actions phase="pre">
<action id="3">
<![CDATA[
t8: t.t8,
answer: f.answer,
state: f.state;
change state value { "Below is your answer."};
make answer, visible on t8 when { true }
]]>
</action>
</actions>
</event>
</transition>
<transition>
<id>t7</id>
<x>784</x>
<y>272</y>
<label>skip_legal</label>
<roleRef>
<id>system</id>
<logic>
<perform>true</perform>
</logic>
</roleRef>
</transition>
<transition>
<id>t8</id>
<x>432</x>
<y>400</y>
<label>Status</label>
<dataGroup>
<id>t8_0</id>
<cols>4</cols>
<layout>grid</layout>
<dataRef>
<id>state</id>
<logic>
<behavior>visible</behavior>
</logic>
<layout>
<x>0</x>
<y>0</y>
<rows>1</rows>
<cols>4</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
</dataRef>
<dataRef>
<id>answer</id>
<logic>
<behavior>hidden</behavior>
</logic>
<layout>
<x>0</x>
<y>1</y>
<rows>2</rows>
<cols>4</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
</dataRef>
<dataRef>
<id>reference_to_request_form</id>
<logic>
<behavior>visible</behavior>
</logic>
<layout>
<x>0</x>
<y>3</y>
<rows>1</rows>
<cols>4</cols>
<template>material</template>
<appearance>outline</appearance>
</layout>
</dataRef>
</dataGroup>
</transition>
<place>
<id>p1</id>
<x>48</x>
<y>272</y>
<label>Start</label>
<tokens>1</tokens>
<static>false</static>
</place>
<place>
<id>p2</id>
<x>304</x>
<y>272</y>
<label>Submitted</label>
<tokens>0</tokens>
<static>false</static>
</place>
<place>
<id>p3</id>
<x>560</x>
<y>272</y>
<label>Registered</label>
<tokens>0</tokens>
<static>false</static>
</place>
<place>
<id>p4</id>
<x>784</x>
<y>176</y>
<label>Waiting for legal</label>
<tokens>0</tokens>
<static>false</static>
</place>
<place>
<id>p5</id>
<x>1008</x>
<y>272</y>
<label>Waiting for answer</label>
<tokens>0</tokens>
<static>false</static>
</place>
<place>
<id>p6</id>
<x>1264</x>
<y>272</y>
<tokens>0</tokens>
<static>false</static>
</place>
<place>
<id>p7</id>
<x>304</x>
<y>400</y>
<label>Submitted</label>
<tokens>0</tokens>
<static>false</static>
</place>
<arc>
<id>a1</id>
<type>regular</type>
<sourceId>p1</sourceId>
<destinationId>t2</destinationId>
<multiplicity>1</multiplicity>
</arc>
<arc>
<id>a10</id>
<type>regular</type>
<sourceId>t6</sourceId>
<destinationId>p6</destinationId>
<multiplicity>1</multiplicity>
</arc>
<arc>
<id>a11</id>
<type>regular</type>
<sourceId>p3</sourceId>
<destinationId>t7</destinationId>
<multiplicity>1</multiplicity>
</arc>
<arc>
<id>a12</id>
<type>regular</type>
<sourceId>t7</sourceId>
<destinationId>p5</destinationId>
<multiplicity>1</multiplicity>
</arc>
<arc>
<id>a13</id>
<type>regular</type>
<sourceId>t2</sourceId>
<destinationId>p7</destinationId>
<multiplicity>1</multiplicity>
</arc>
<arc>
<id>a14</id>
<type>read</type>
<sourceId>p7</sourceId>
<destinationId>t8</destinationId>
<multiplicity>1</multiplicity>
</arc>
<arc>
<id>a2</id>
<type>regular</type>
<sourceId>t2</sourceId>
<destinationId>p2</destinationId>
<multiplicity>1</multiplicity>
</arc>
<arc>
<id>a3</id>
<type>regular</type>
<sourceId>p2</sourceId>
<destinationId>t3</destinationId>
<multiplicity>1</multiplicity>
</arc>
<arc>
<id>a4</id>
<type>regular</type>
<sourceId>t3</sourceId>
<destinationId>p3</destinationId>
<multiplicity>1</multiplicity>
</arc>
<arc>
<id>a5</id>
<type>regular</type>
<sourceId>p3</sourceId>
<destinationId>t4</destinationId>
<multiplicity>1</multiplicity>
</arc>
<arc>
<id>a6</id>
<type>regular</type>
<sourceId>t4</sourceId>
<destinationId>p4</destinationId>
<multiplicity>1</multiplicity>
</arc>
<arc>
<id>a7</id>
<type>regular</type>
<sourceId>p4</sourceId>
<destinationId>t5</destinationId>
<multiplicity>1</multiplicity>
</arc>
<arc>
<id>a8</id>
<type>regular</type>
<sourceId>t5</sourceId>
<destinationId>p5</destinationId>
<multiplicity>1</multiplicity>
</arc>
<arc>
<id>a9</id>
<type>regular</type>
<sourceId>p5</sourceId>
<destinationId>t6</destinationId>
<multiplicity>1</multiplicity>
</arc>
</document>NOTE
Treat each deployment like a small release: update → export → upload → test.
Keep your XML under version control to track changes and collaborate.
Summary
You shipped a fully working Request application:
- Cleaned up metadata and exported Petriflow XML
- Tuned assignment for smooth UX
- Deployed to eTask and validated end-to-end
You’ve completed the Builder → Petriflow → eTask loop and are ready for real-world iterations.
